状态模式允许对象在内部状态改变时改变它的行为，对象看起来好像修改了它的类。

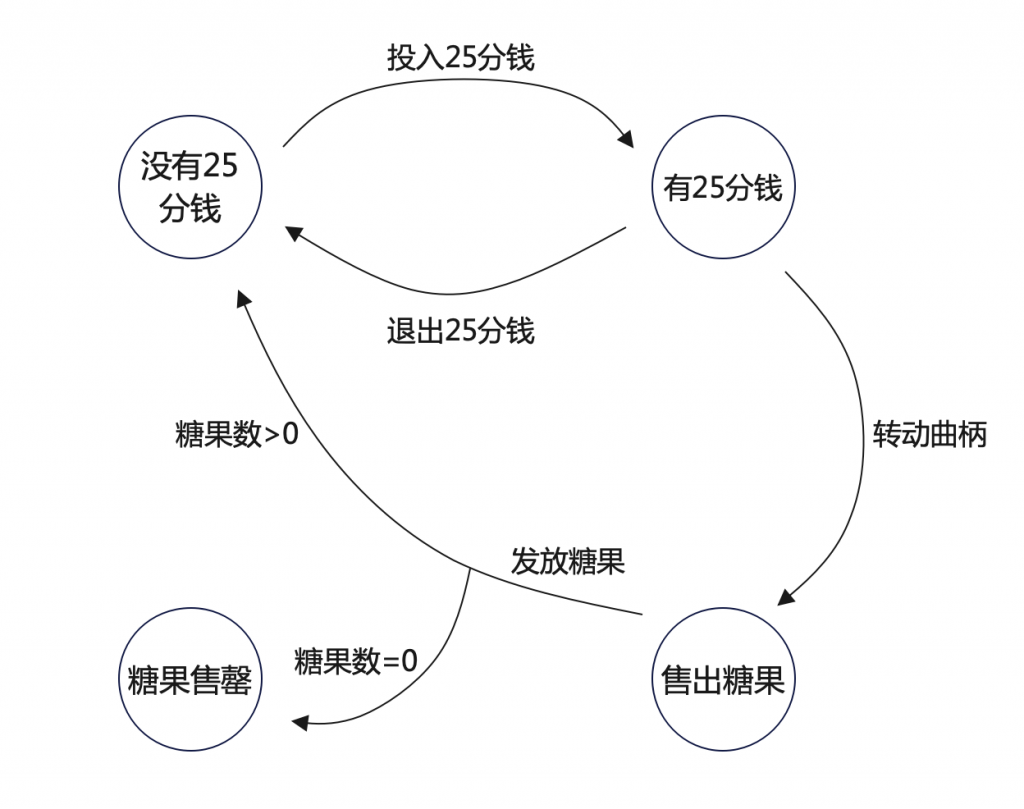

现在有一个场景：你需要设计出一个糖果机，让它能正常进行糖果出售等行为。状态转换图如下：
这是可能的初级设计方案：
public class GumballMachine {
final static int SOLD_OUT = 0;
final static int NO_QUARTER = 1;
final static int HAS_QUARTER = 2;
final static int SOLD = 3;
int state = SOLD_OUT;
int count = 0;
public GumballMachine(int count) {
this.count = count;
if (count > 0) {
state = NO_QUARTER;
}
}
public void insertQuarter() {
if (state == HAS_QUARTER) {
System.out.println("You can't insert another quarter");
} else if (state == NO_QUARTER) {
state = HAS_QUARTER;
System.out.println("You inserted a quarter");
} else if (state == SOLD_OUT) {
System.out.println("You can't insert a quarter, the machine is sold out");
} else if (state == SOLD) {
System.out.println("Please wait, we're already giving you a gumball");
}
}
public void ejectQuarter() {
if (state == HAS_QUARTER) {
System.out.println("Quarter retured");
state = NO_QUARTER;
} else if (state == NO_QUARTER) {
System.out.println("You haven't inserted a quarter");
} else if (state == SOLD) {
System.out.println("Sorry, you already turned the crank");
} else if (state == SOLD_OUT) {
System.out.println("You can't eject, you haven't inserted a quarter yet");
}
}
public void turnCrank() {
if (state == SOLD) {
System.out.println("Turning twice doesn't get you another gumball");
} else if (state == NO_QUARTER) {
System.out.println("You turned but there's no quarter");
} else if (state == SOLD_OUT) {
System.out.println("You turned but there are no gumball");
} else if (state == HAS_QUARTER) {
System.out.println("You turned...");
state = SOLD;
dispense();
}
}
public void dispense() {
if (state == SOLD) {
System.out.println("A gumball comes rolling out the slot");
count = count - 1;
if (count == 0) {
System.out.println("Oops, out of gumball");
state = SOLD_OUT;
} else {
state = NO_QUARTER;
}
} else if (state == NO_QUARTER) {
System.out.println("You need to pay first");
} else if (state == SOLD_OUT) {
System.out.println("No gumball dispensed");
} else if (state == HAS_QUARTER) {
System.out.println("No gumball dispensed");
}
}
@Override
public String toString() {
if (state == SOLD_OUT) {
return "Machine is sold out";
} else if (state == NO_QUARTER) {
return "Mahcine is waiting for quarter";
} else if (state == HAS_QUARTER) {
return "Machine is waiting for crank";
} else if (state == SOLD) {
return "Machine is solding";
} else {
return "";
}
}
}现在我们加入一个新的需求：当投入硬币并转动曲柄时，有10%概率会获得两个糖果，我们称之为赢家状态。这是一个新增的状态，如果沿用初始设计，我们增加新状态时不得不修改原有代码，这样的设计并没有可扩展性，所以我们打算用状态模式对代码进行优化：
public interface State {
public void insertQuarter();
public void ejectQuarter();
public void turnCrank();
public void dispense();
}public class GumballMachine {
State soldOutState;
State noQuarterState;
State hasQuarterState;
State soldState;
State state = soldOutState;
int count = 0;
public GumballMachine(int numberGumballs) {
soldOutState = new SoldOutState(this);
noQuarterState = new NoQuarterState(this);
hasQuarterState = new HasQuarterState(this);
soldState = new SoldState(this);
this.count = numberGumballs;
if (numberGumballs > 0) {
state = noQuarterState;
}
}
public void insertQuarter() {
state.insertQuarter();
}
public void ejectQuarter() {
state.ejectQuarter();
}
public void turnCrank() {
state.turnCrank();
state.dispense();
}
public void setState(State state) {
this.state = state;
}
void releaseBall() {
System.out.println("A gumball comes rolling out the slot...");
if (count != 0) {
count = count - 1;
}
}
public State getSoldOutState() {
return soldOutState;
}
public State getNoQuarterState() {
return noQuarterState;
}
public State getHasQuarterState() {
return hasQuarterState;
}
public State getSoldState() {
return soldState;
}
public int getCount() {
return count;
}
}public class HasQuarterState implements State {
GumballMachine gumballMachine;
public HasQuarterState(GumballMachine gumballMachine) {
this.gumballMachine = gumballMachine;
}
@Override
public void insertQuarter() {
System.out.println("You can't insert another quarter");
}
@Override
public void ejectQuarter() {
System.out.println("Quarter returned");
gumballMachine.setState(gumballMachine.getNoQuarterState());
}
@Override
public void turnCrank() {
System.out.println("You turned...");
gumballMachine.setState(gumballMachine.getSoldState());
}
@Override
public void dispense() {
System.out.println("No gumball dispensed");
}
}public class NoQuarterState implements State {
GumballMachine gumballMachine;
public NoQuarterState(GumballMachine gumballMachine) {
this.gumballMachine = gumballMachine;
}
@Override
public void insertQuarter() {
System.out.println("You inserted a quarter");
gumballMachine.setState(gumballMachine.getHasQuarterState());
}
@Override
public void ejectQuarter() {
System.out.println("You haven't inserted a quarter");
}
@Override
public void turnCrank() {
System.out.println("You turned, but there's no quarter");
}
@Override
public void dispense() {
System.out.println("You need to pay first");
}
}public class SoldOutState implements State {
GumballMachine gumballMachine;
public SoldOutState(GumballMachine gumballMachine) {
this.gumballMachine = gumballMachine;
}
@Override
public void insertQuarter() {
System.out.println("Candy has been solded out");
}
@Override
public void ejectQuarter() {
System.out.println("Candy has been solded out");
}
@Override
public void turnCrank() {
System.out.println("Candy has been solded out");
}
@Override
public void dispense() {
System.out.println("Candy has been solded out");
}
}public class SoldState implements State {
GumballMachine gumballMachine;
public SoldState(GumballMachine gumballMachine) {
this.gumballMachine = gumballMachine;
}
@Override
public void insertQuarter() {
System.out.println("Please wait, we're already giving you a gumball");
}
@Override
public void ejectQuarter() {
System.out.println("Sorry, you already turned the crank");
}
@Override
public void turnCrank() {
System.out.println("Turning twice doesn't get you another gumball");
}
@Override
public void dispense() {
gumballMachine.releaseBall();
if (gumballMachine.getCount() > 0) {
gumballMachine.setState(gumballMachine.getNoQuarterState());
} else {
System.out.println("Oops, out of gumballs");
gumballMachine.setState(gumballMachine.getSoldOutState());
}
}
}因为行为没有变化，我们把行为统一到状态接口中去，这样在增加状态时就不需要改变原有的行为代码，实现了状态之间行为实现的解耦。
最后我们新增赢家状态，并对其他逻辑进行调整：
public class WinnerState implements State {
GumballMachine gumballMachine;
public WinnerState(GumballMachine gumballMachine) {
this.gumballMachine = gumballMachine;
}
@Override
public void insertQuarter() {
System.out.println("Please wait, we're already giving you a gumball");
}
@Override
public void ejectQuarter() {
System.out.println("Sorry, you already turned the crank");
}
@Override
public void turnCrank() {
System.out.println("Turning twice doesn't get you another gumball");
}
@Override
public void dispense() {
System.out.println("You're a winner! You get two gumballs for your quarter");
gumballMachine.releaseBall();
if (gumballMachine.getCount() == 0) {
gumballMachine.setState(gumballMachine.getSoldOutState());
} else {
gumballMachine.releaseBall();
if (gumballMachine.getCount() > 0) {
gumballMachine.setState(gumballMachine.getNoQuarterState());
} else {
System.out.println("Oops, out of gumballs");
gumballMachine.setState(gumballMachine.getSoldOutState());
}
}
}
}public class HasQuarterState implements State {
GumballMachine gumballMachine;
Random randomWinner = new Random(System.currentTimeMillis());
public HasQuarterState(GumballMachine gumballMachine) {
this.gumballMachine = gumballMachine;
}
@Override
public void insertQuarter() {
System.out.println("You can't insert another quarter");
}
@Override
public void ejectQuarter() {
System.out.println("Quarter returned");
gumballMachine.setState(gumballMachine.getNoQuarterState());
}
@Override
public void turnCrank() {
System.out.println("You turned...");
int winner = randomWinner.nextInt(10);
if ((winner == 0) && (gumballMachine.getCount() > 1)) {
gumballMachine.setState(gumballMachine.getWinnerState());
} else {
gumballMachine.setState(gumballMachine.getSoldState());
}
}
@Override
public void dispense() {
System.out.println("No gumball dispensed");
}
}public class GumballMachine {
State soldOutState;
State noQuarterState;
State hasQuarterState;
State soldState;
State winnerState;
State state = soldOutState;
int count = 0;
public GumballMachine(int numberGumballs) {
soldOutState = new SoldOutState(this);
noQuarterState = new NoQuarterState(this);
hasQuarterState = new HasQuarterState(this);
soldState = new SoldState(this);
winnerState = new WinnerState(this);
this.count = numberGumballs;
if (numberGumballs > 0) {
state = noQuarterState;
}
}
public void insertQuarter() {
state.insertQuarter();
}
public void ejectQuarter() {
state.ejectQuarter();
}
public void turnCrank() {
state.turnCrank();
state.dispense();
}
public void setState(State state) {
this.state = state;
}
void releaseBall() {
System.out.println("A gumball comes rolling out the slot...");
if (count != 0) {
count = count - 1;
}
}
public State getSoldOutState() {
return soldOutState;
}
public State getNoQuarterState() {
return noQuarterState;
}
public State getHasQuarterState() {
return hasQuarterState;
}
public State getSoldState() {
return soldState;
}
public State getWinnerState() {
return winnerState;
}
public int getCount() {
return count;
}

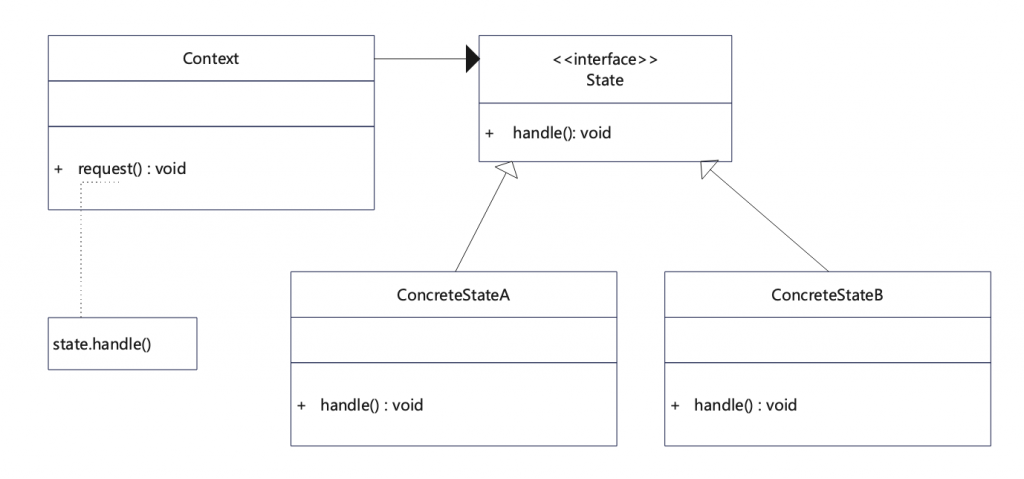

}状态模式的类图如下：
